Product details

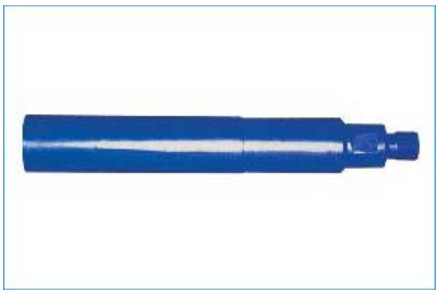

The CLT sucker rod socket is a salvage tool used to salvage the sucker rod body and coupling. By replacing the slips or guide shoes, the specifications of the salvage rod and coupling can be changed.
(1)Specification and model
| Type | Outside diameter | Salvage specifications mm(in) | Allowable load (KN) | Joint thread |
| CLT-16-55 | 55 | 16(5/8”) | 200 | 22抽油杆扣 |
| CLT-19-55 | 55 | 19(3/4”) | 220 | 22抽油杆扣 |
| CLT-22-55 | 55 | 22(7/8”) | 280 | 22抽油杆扣 |
| CLT-25-55 | 55 | 25(1”) | 350 | 22抽油杆扣 |
| CLT-28-55 | 55 | 28(1-1/8”） | 390 | 22抽油杆扣 |
| CLT-38-59(60) | 59 (60） | 38(1-1/2”) | 450 | 1-3/16” |
| CLT-41-59(60) | 59 (60） | 41(1-5/8”) | 450 | 1-3/16” |
| CLT-22-70 | 70 | 22(7/8”) | 560 | 1-3/8” |
| CLT-25-70 | 70 | 25(1”） | 560 | 1-3/8” |
| CLT-38-70 | 70 | 38(1-1/2”) | 610 | 1-3/16” |
| CLT-41-70 | 70 | 41(1-5/8”) | 610 | 1-3/16” |
| CLT-46-70 | 70 | 46(1-13/16”) | 610 | 1-3/16” |
| CLT-22-72 | 72 | 22(7/8”) | ||
| CLT-28-72 | 72 | 28(1-1/8”) ) | ||
| CLT-46-72 | 72 | 46(1-13/16”) |
