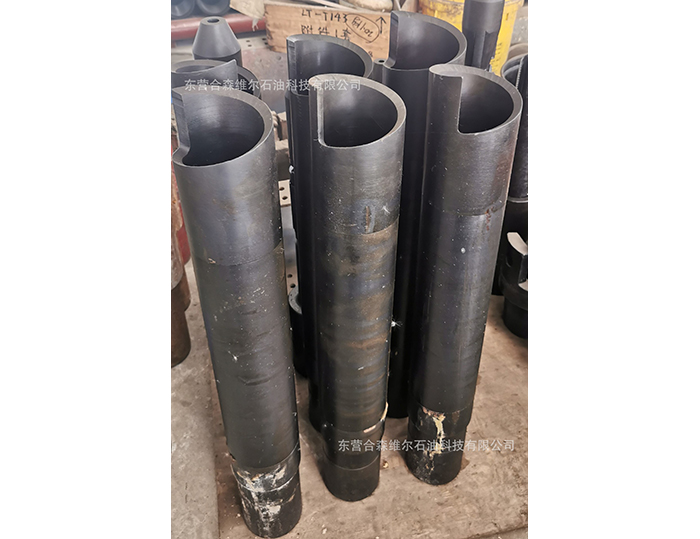

Overshot is a fishing tool that uses the slip to move and catch the outer diameter of a tubular fish on the spiral surface of the tube. Equipped with accessories such as elongated short joints, wall hooks, and enlarged guide shoes according to different purposes.
Technical Parameter
Type | O.D. (mm) | Max size of fishing （mm） | Connection | Type | O.D. (mm) | Max size of fishing （mm） | Connection | ||
Shiral slip | Basket slip | Shiral slip | Basket slip | ||||||
TLT89 | 89 | 60 | 47.5 | NC26 | TLT200 | 200 | 159 | 140 | NC50 |
TLT92 | 92 | 76 | 66.5 | NC26 | TLT206 | 206 | 178 | 159 | NC50 |
TLT95 | 95 | 77.5 | 68 | NC26 | TLT219 | 219 | 178 | 162 | NC50 |
TLT105 | 105 | 82.5 | 70.5 | NC31 | TLT225 | 225 | 197 | 178 | NC50 |
TLT117 | 117 | 89 | 76 | NC31 | TLT232 | 232 | 203 | 187 | 6 5/8”REG |
TLT127 | 127 | 95 | 79.5 | NC38 | TLT244 | 244 | 213 | 197 | 6 5/8”REG |
TLT143 | 143 | 121 | 108 | NC38 | TLT254 | 254 | 225 | 206 | 6 5/8”REG |
TLT152 | 152 | 127 | 108 | NC38 | TLT260 | 260 | 228 | 210 | 6 5/8”REG |
TLT162 | 162 | 133.5 | 117.5 | NC50 | TLT273 | 273 | 241 | 225 | 6 5/8”REG |
TLT168 | 168 | 140 | 121 | NC50 | TLT286 | 286 | 254 | 225 | 6 5/8”REG |
TLT187 | 178 | 146 | 127 | NC50 | TLT340 | 340 | 286 | 254 | 7 5/8”REG |
TLT194 | 194 | 159 | 130 | NC50 | TLT406 | 406 | 340 | 286 | 7 5/8”REG |
